# import libraries
from datetime import datetime, timedelta
import pandas as pd
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from __future__ import division

import plotly.plotly as py
import plotly.offline as pyoff
import plotly.graph_objs as go

#initiate visualization library for jupyter notebook
pyoff.init_notebook_mode()

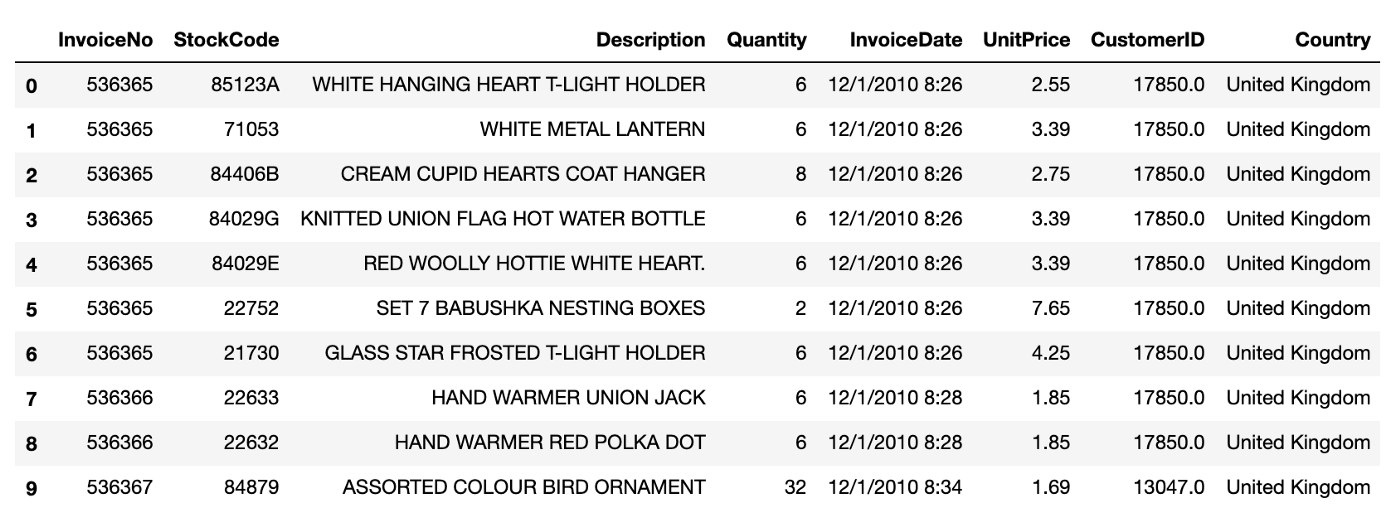

tx_data = pd.read_csv('data.csv')

tx_data.head(10)

#converting the type of Invoice Date Field from string to datetime.
tx_data['InvoiceDate'] = pd.to_datetime(tx_data['InvoiceDate'])

#creating YearMonth field for the ease of reporting and visualization
tx_data['InvoiceYearMonth'] = tx_data['InvoiceDate'].map(lambda date: 100*date.year + date.month)

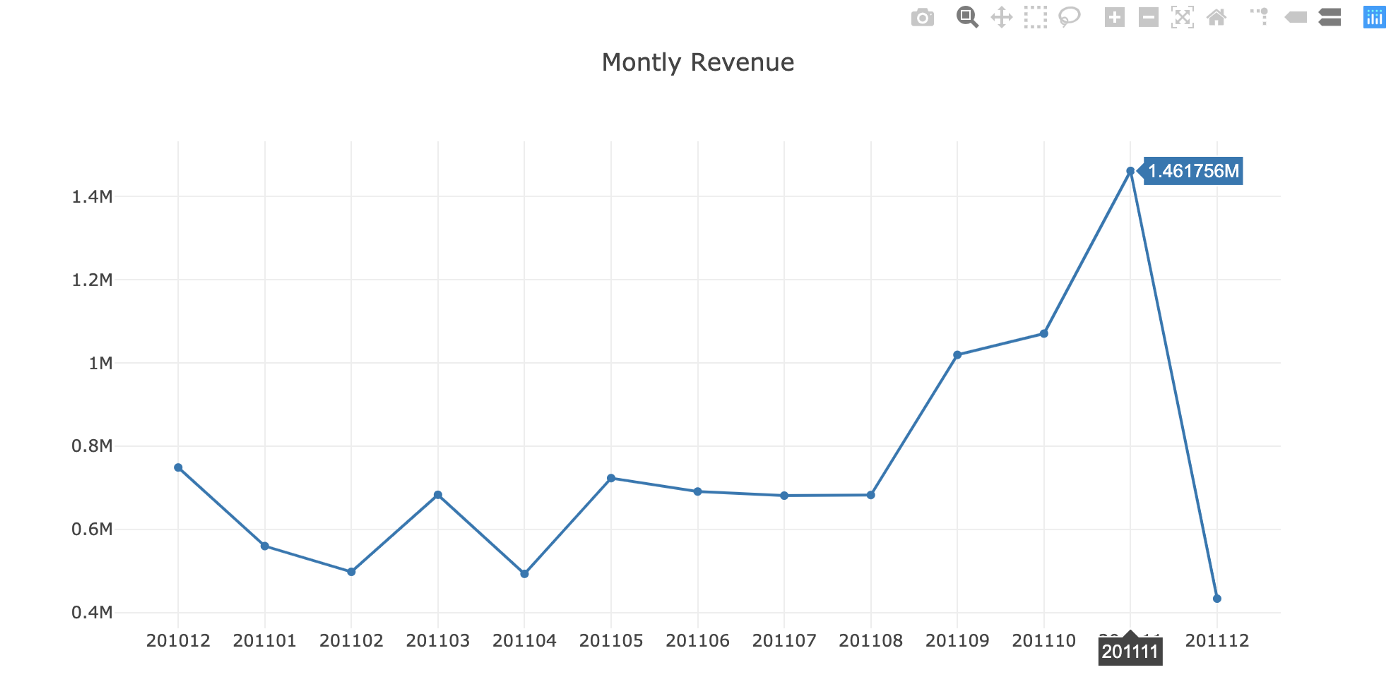

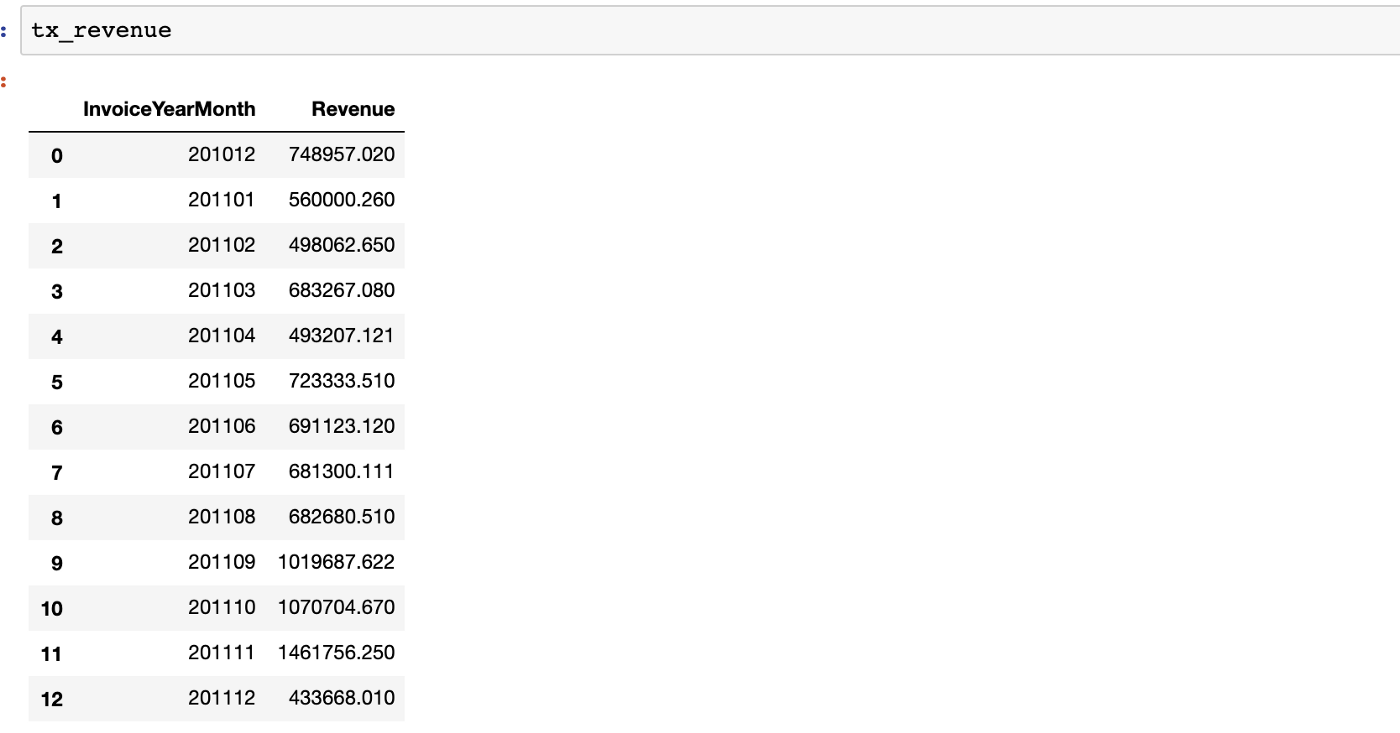

#calculate Revenue for each row and create a new dataframe with YearMonth - Revenue columns
tx_data['Revenue'] = tx_data['UnitPrice'] * tx_data['Quantity']
tx_revenue = tx_data.groupby(['InvoiceYearMonth'])['Revenue'].sum().reset_index()
tx_revenue

#using pct_change() function to see monthly percentage change
tx_revenue['MonthlyGrowth'] = tx_revenue['Revenue'].pct_change()

#showing first 5 rows
tx_revenue.head()

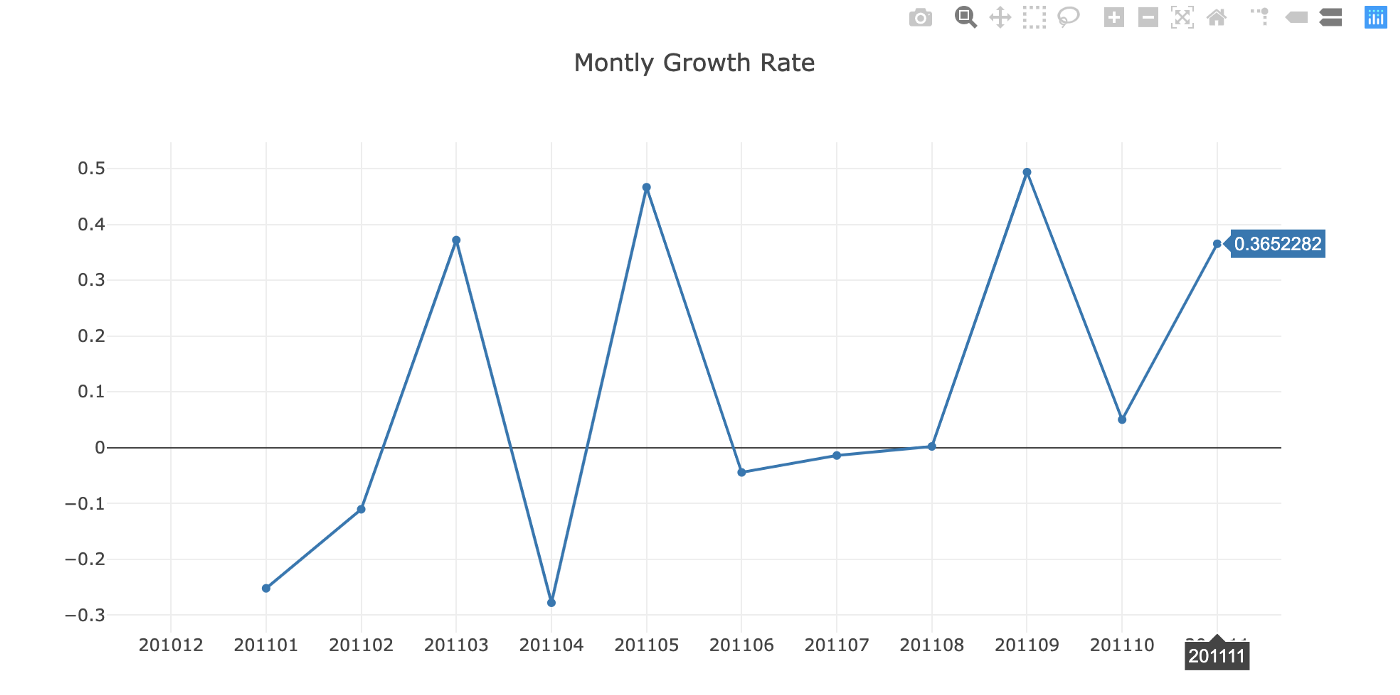

#visualization - line graph
plot_data = [
    go.Scatter(
        x=tx_revenue.query("InvoiceYearMonth < 201112")['InvoiceYearMonth'],
        y=tx_revenue.query("InvoiceYearMonth < 201112")['MonthlyGrowth'],
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='Montly Growth Rate'
    )

fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

#creating a new dataframe with UK customers only
tx_uk = tx_data.query("Country=='United Kingdom'").reset_index(drop=True)

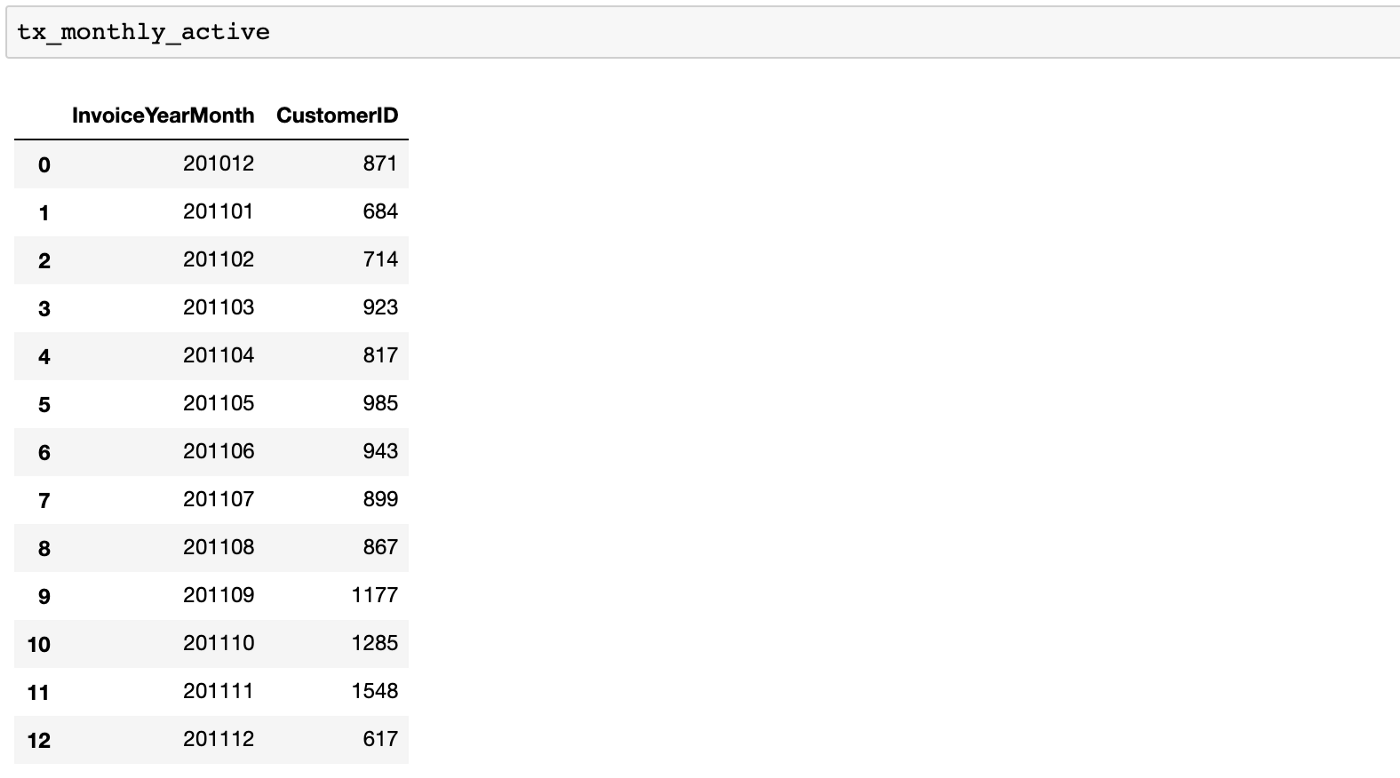

#creating monthly active customers dataframe by counting unique Customer IDs
tx_monthly_active = tx_uk.groupby('InvoiceYearMonth')['CustomerID'].nunique().reset_index()

#print the dataframe
tx_monthly_active

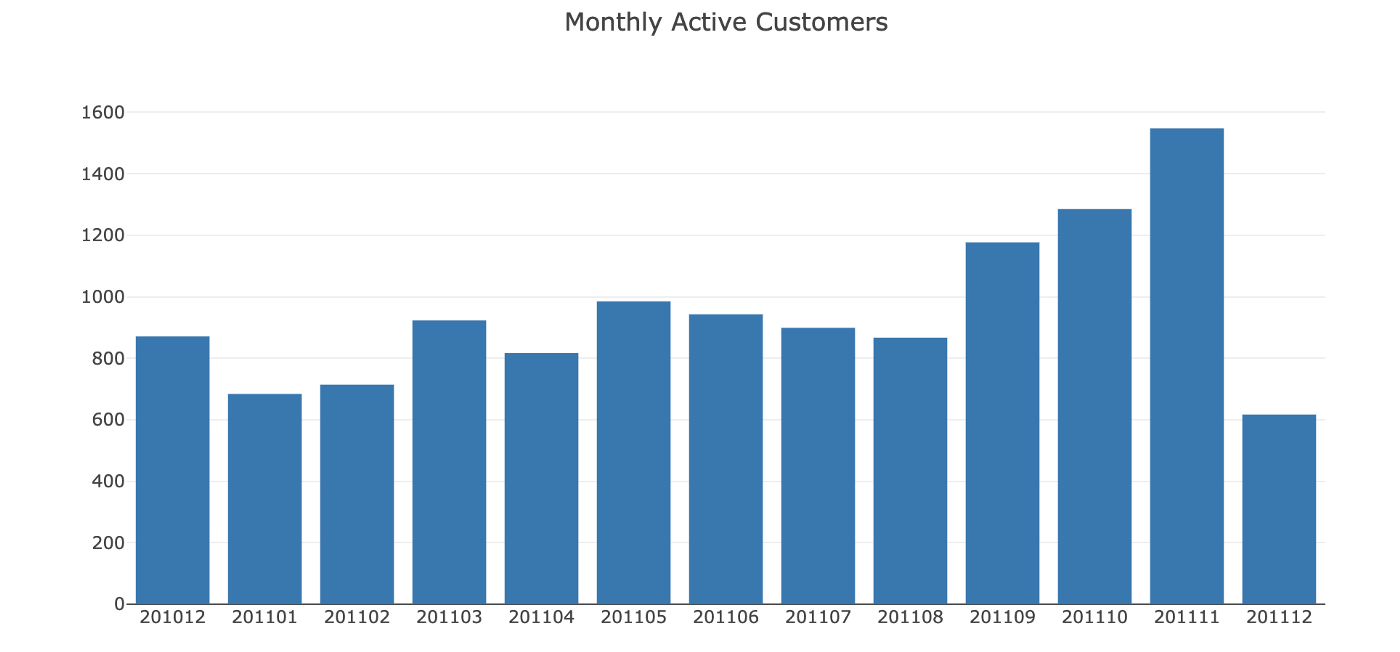

#plotting the output
plot_data = [
    go.Bar(
        x=tx_monthly_active['InvoiceYearMonth'],
        y=tx_monthly_active['CustomerID'],
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='Monthly Active Customers'
    )

fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

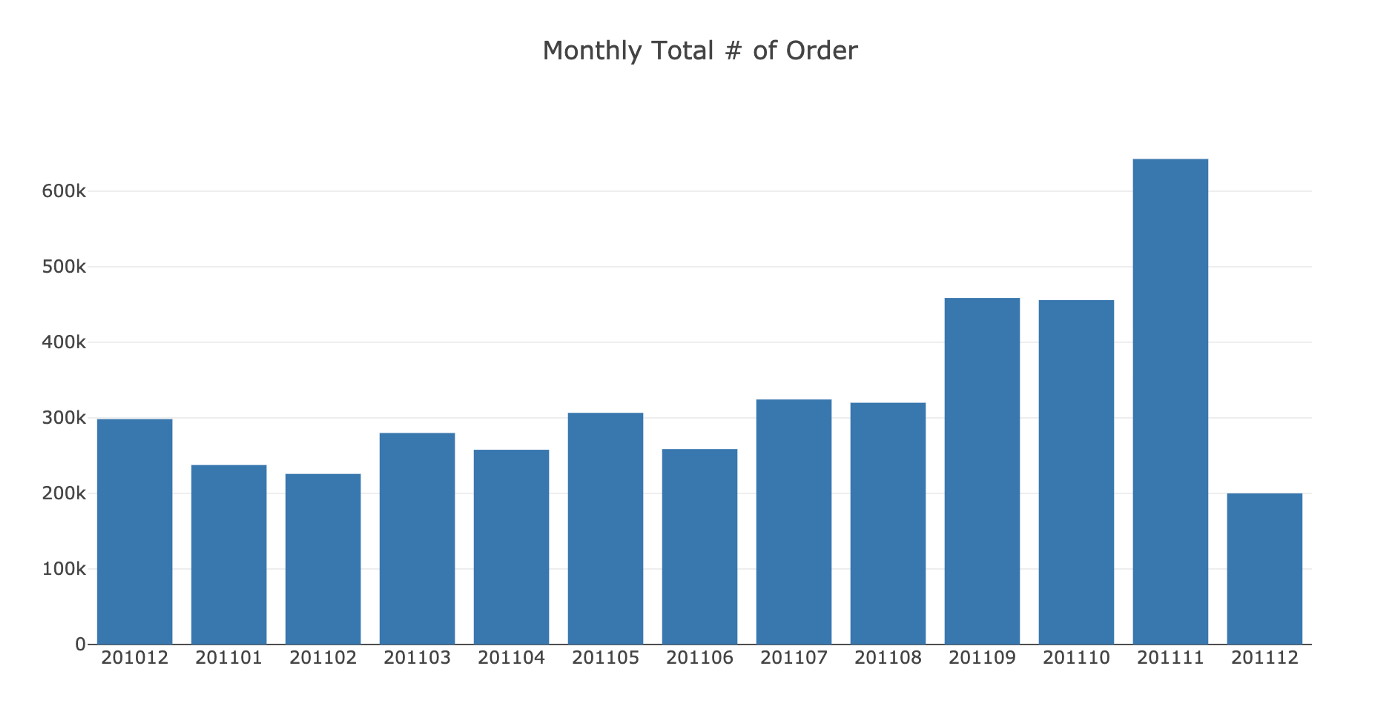

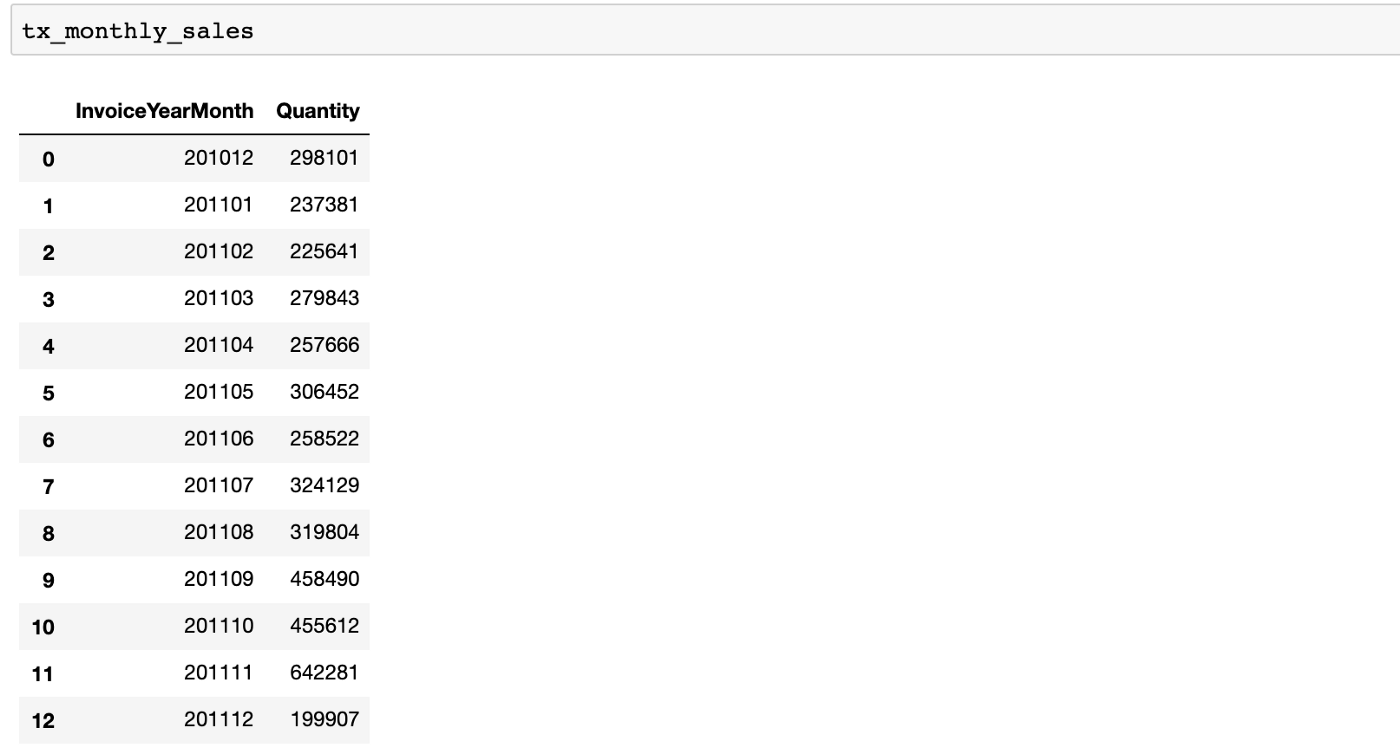

#create a new dataframe for no. of order by using quantity field
tx_monthly_sales = tx_uk.groupby('InvoiceYearMonth')['Quantity'].sum().reset_index()

#print the dataframe
tx_monthly_sales

#plot
plot_data = [
    go.Bar(
        x=tx_monthly_sales['InvoiceYearMonth'],
        y=tx_monthly_sales['Quantity'],
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='Monthly Total # of Order'
    )

fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

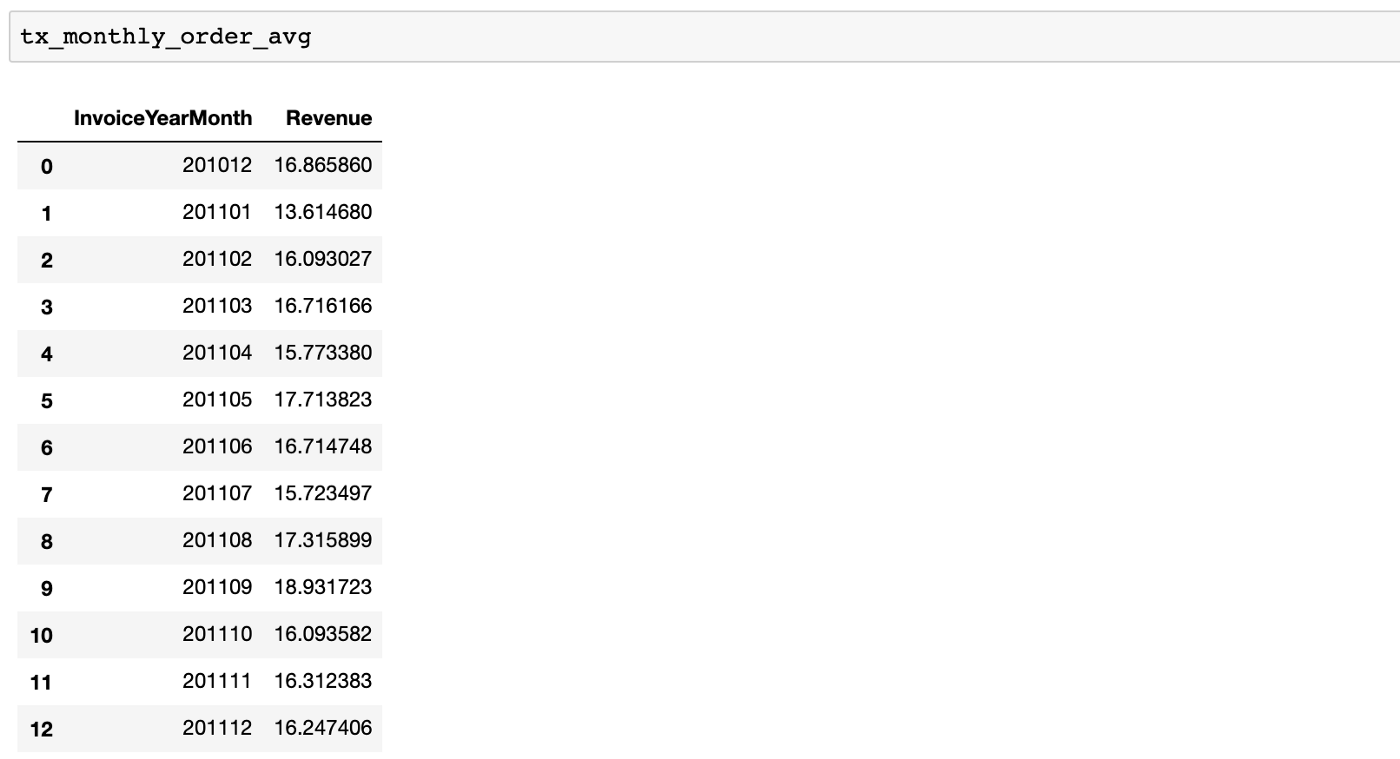

# create a new dataframe for average revenue by taking the mean of it
tx_monthly_order_avg = tx_uk.groupby('InvoiceYearMonth')['Revenue'].mean().reset_index()

#print the dataframe
tx_monthly_order_avg

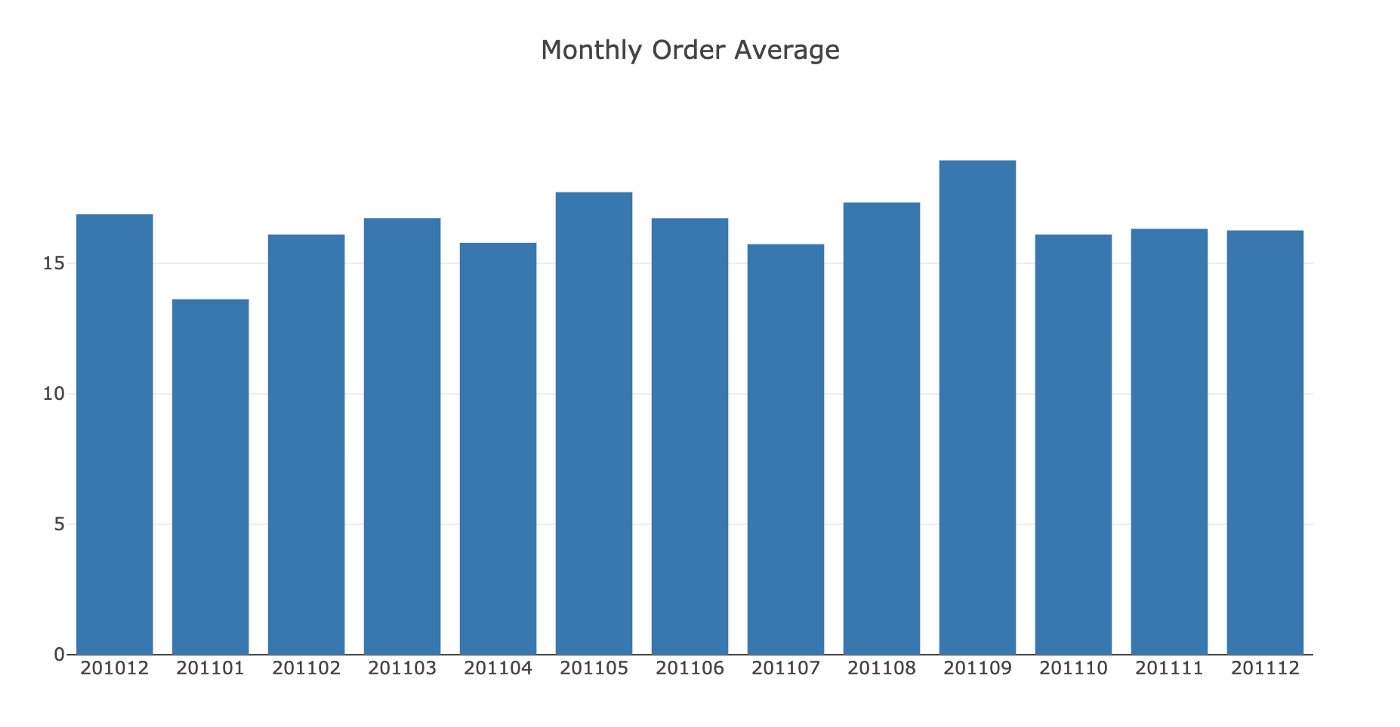

#plot the bar chart
plot_data = [
    go.Bar(
        x=tx_monthly_order_avg['InvoiceYearMonth'],
        y=tx_monthly_order_avg['Revenue'],
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='Monthly Order Average'
    )
fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

#create a dataframe contaning CustomerID and first purchase date
tx_min_purchase = tx_uk.groupby('CustomerID').InvoiceDate.min().reset_index()
tx_min_purchase.columns = ['CustomerID','MinPurchaseDate']
tx_min_purchase['MinPurchaseYearMonth'] = tx_min_purchase['MinPurchaseDate'].map(lambda date: 100*date.year + date.month)

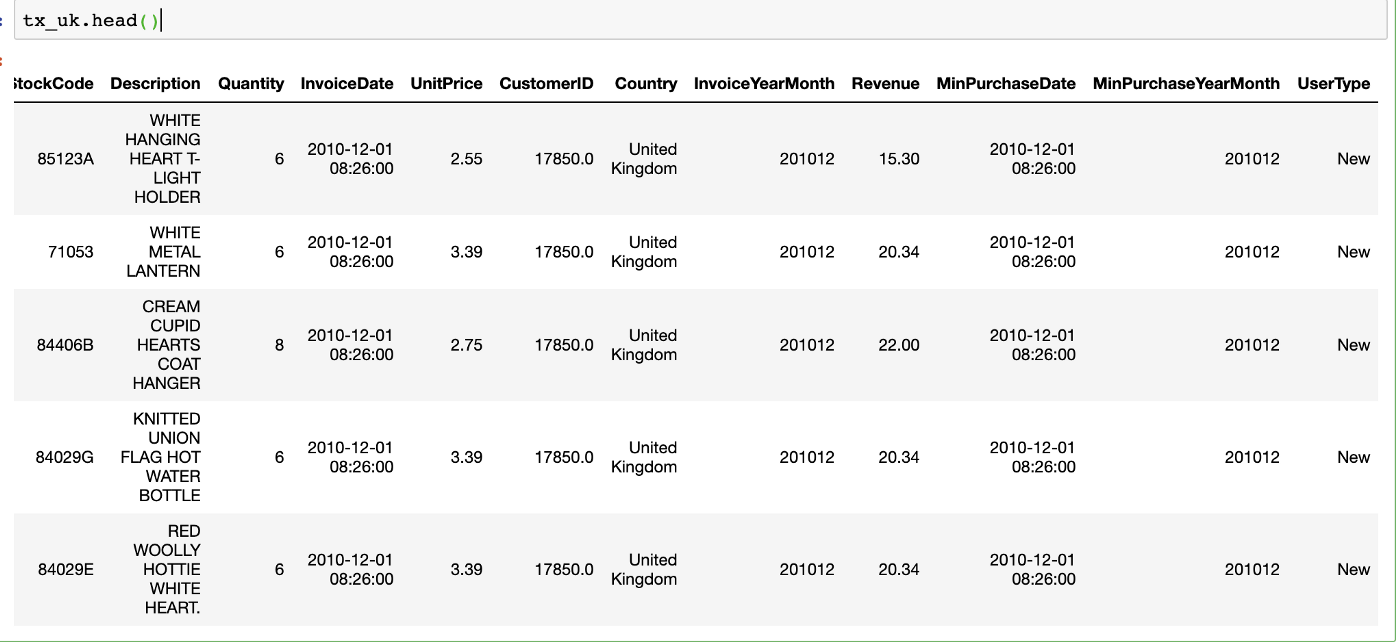

#merge first purchase date column to our main dataframe (tx_uk)
tx_uk = pd.merge(tx_uk, tx_min_purchase, on='CustomerID')

tx_uk.head()

#create a column called User Type and assign Existing
#if User's First Purchase Year Month before the selected Invoice Year Month
tx_uk['UserType'] = 'New'
tx_uk.loc[tx_uk['InvoiceYearMonth']>tx_uk['MinPurchaseYearMonth'],'UserType'] = 'Existing'

#calculate the Revenue per month for each user type
tx_user_type_revenue = tx_uk.groupby(['InvoiceYearMonth','UserType'])['Revenue'].sum().reset_index()

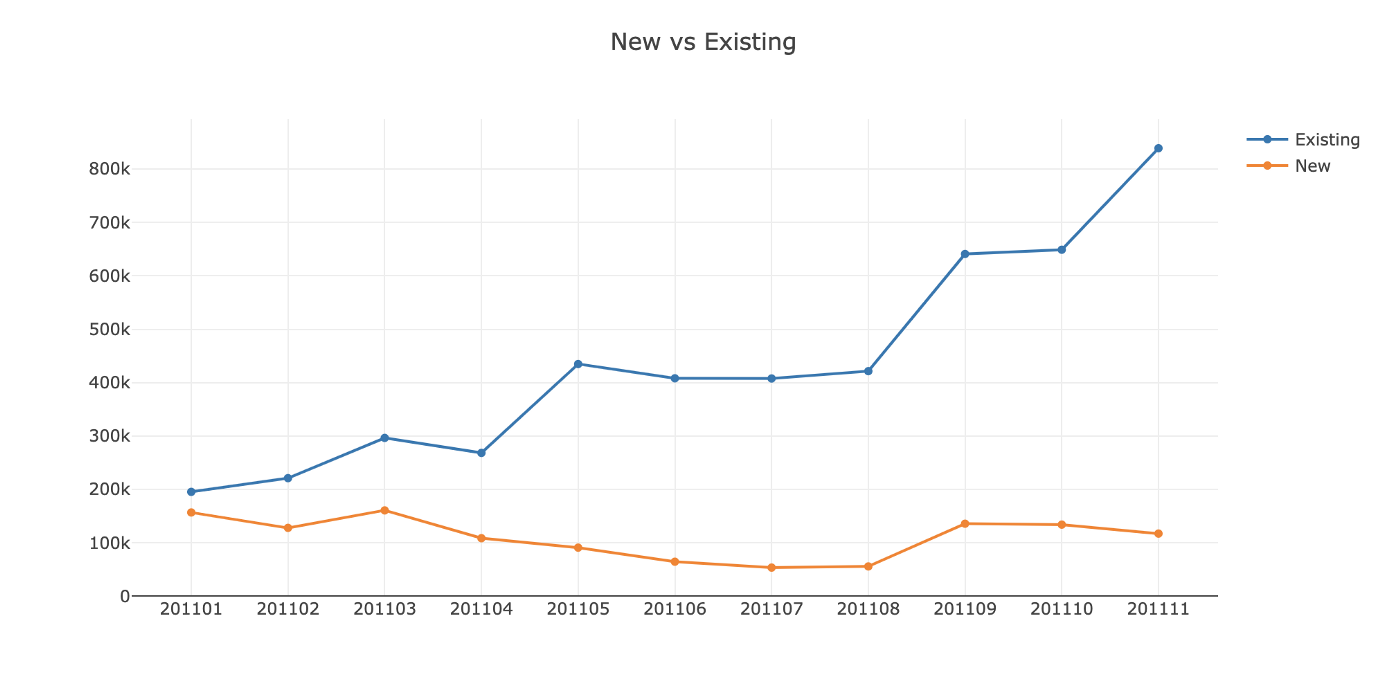

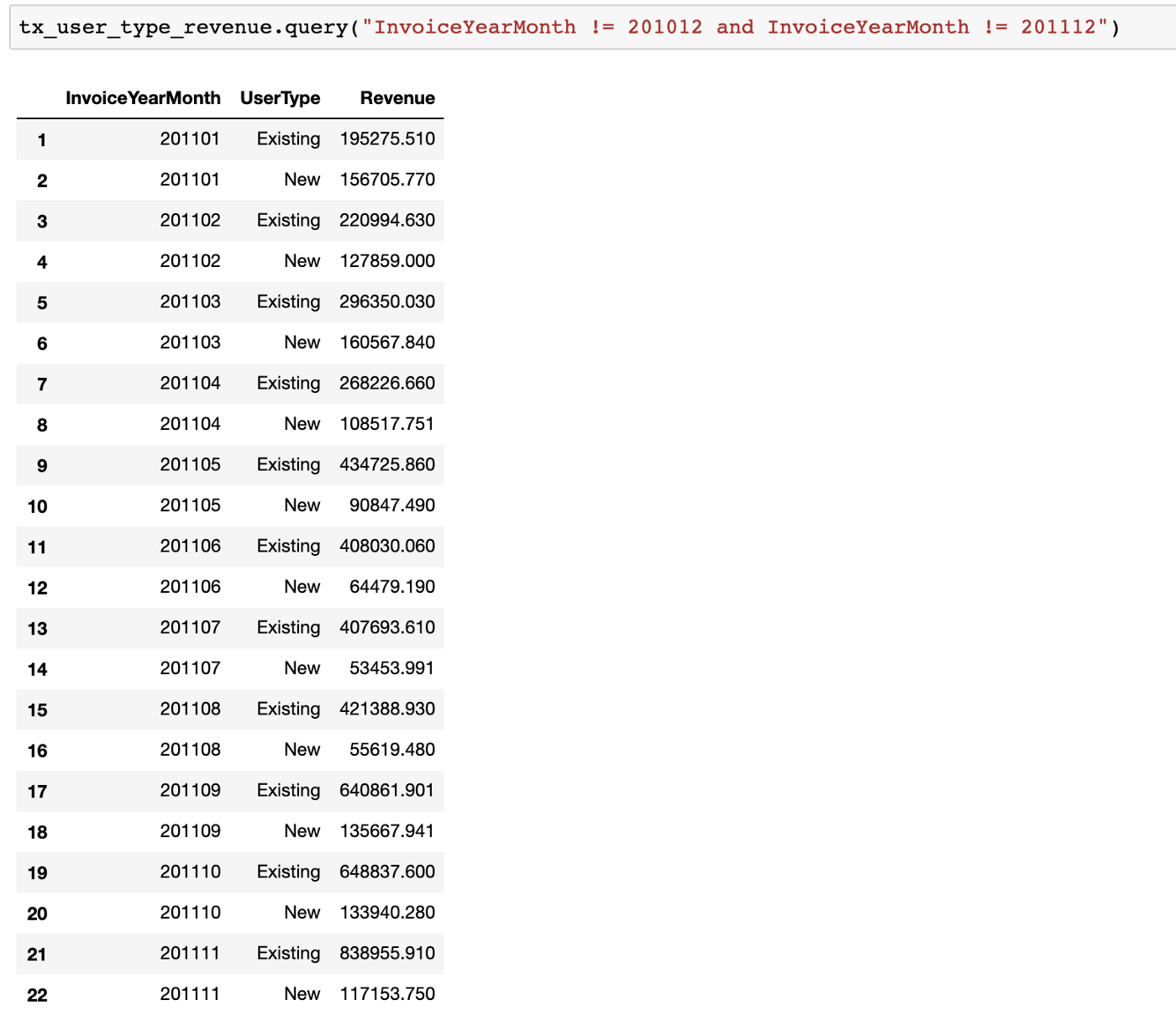

#filtering the dates and plot the result
tx_user_type_revenue = tx_user_type_revenue.query("InvoiceYearMonth != 201012 and InvoiceYearMonth != 201112")
plot_data = [
    go.Scatter(
        x=tx_user_type_revenue.query("UserType == 'Existing'")['InvoiceYearMonth'],
        y=tx_user_type_revenue.query("UserType == 'Existing'")['Revenue'],
        name = 'Existing'
    ),
    go.Scatter(
        x=tx_user_type_revenue.query("UserType == 'New'")['InvoiceYearMonth'],
        y=tx_user_type_revenue.query("UserType == 'New'")['Revenue'],
        name = 'New'
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='New vs Existing'
    )
fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

#create a dataframe that shows new user ratio - we also need to drop NA values (first month new user ratio is 0)
tx_user_ratio = tx_uk.query("UserType == 'New'").groupby(['InvoiceYearMonth'])['CustomerID'].nunique()/tx_uk.query("UserType == 'Existing'").groupby(['InvoiceYearMonth'])['CustomerID'].nunique()
tx_user_ratio = tx_user_ratio.reset_index()
tx_user_ratio = tx_user_ratio.dropna()

#print the dafaframe
tx_user_ratio

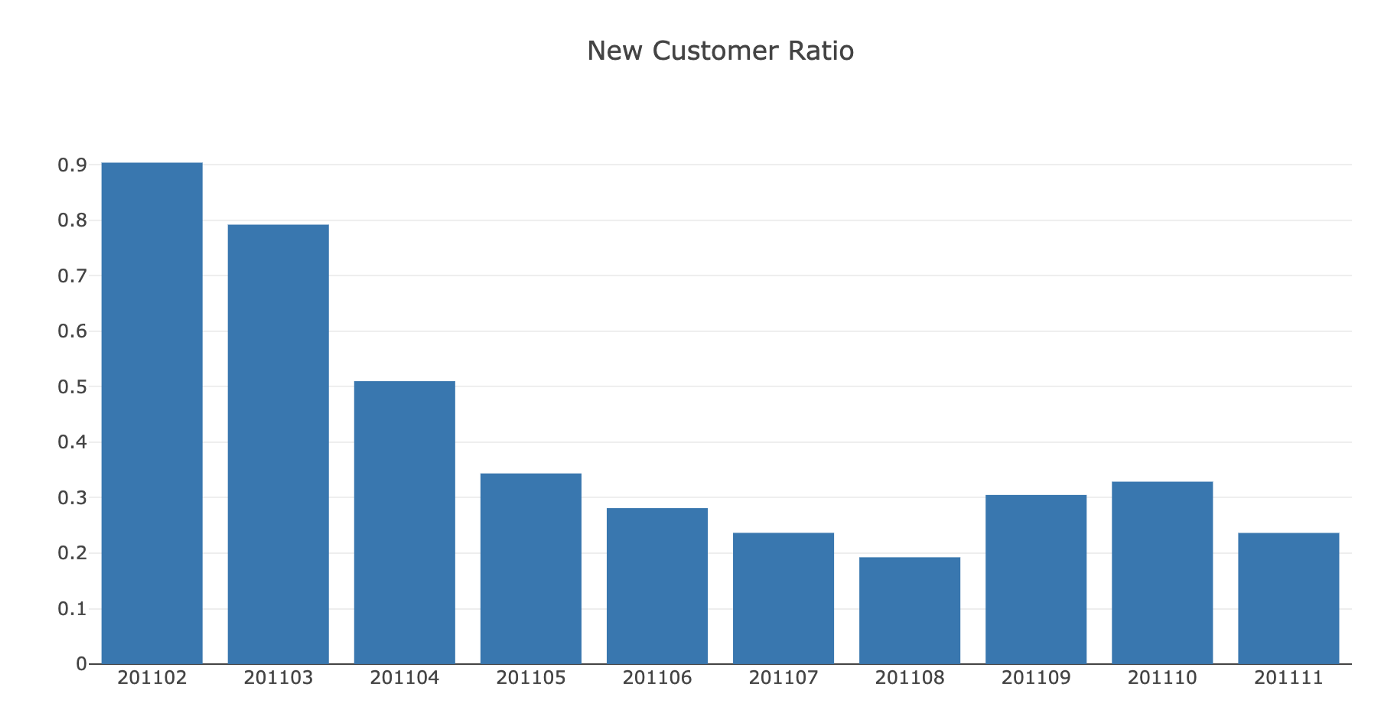

#plot the result

plot_data = [
    go.Bar(
        x=tx_user_ratio.query("InvoiceYearMonth>201101 and InvoiceYearMonth<201112")['InvoiceYearMonth'],
        y=tx_user_ratio.query("InvoiceYearMonth>201101 and InvoiceYearMonth<201112")['CustomerID'],
    )
]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='New Customer Ratio'
    )
fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

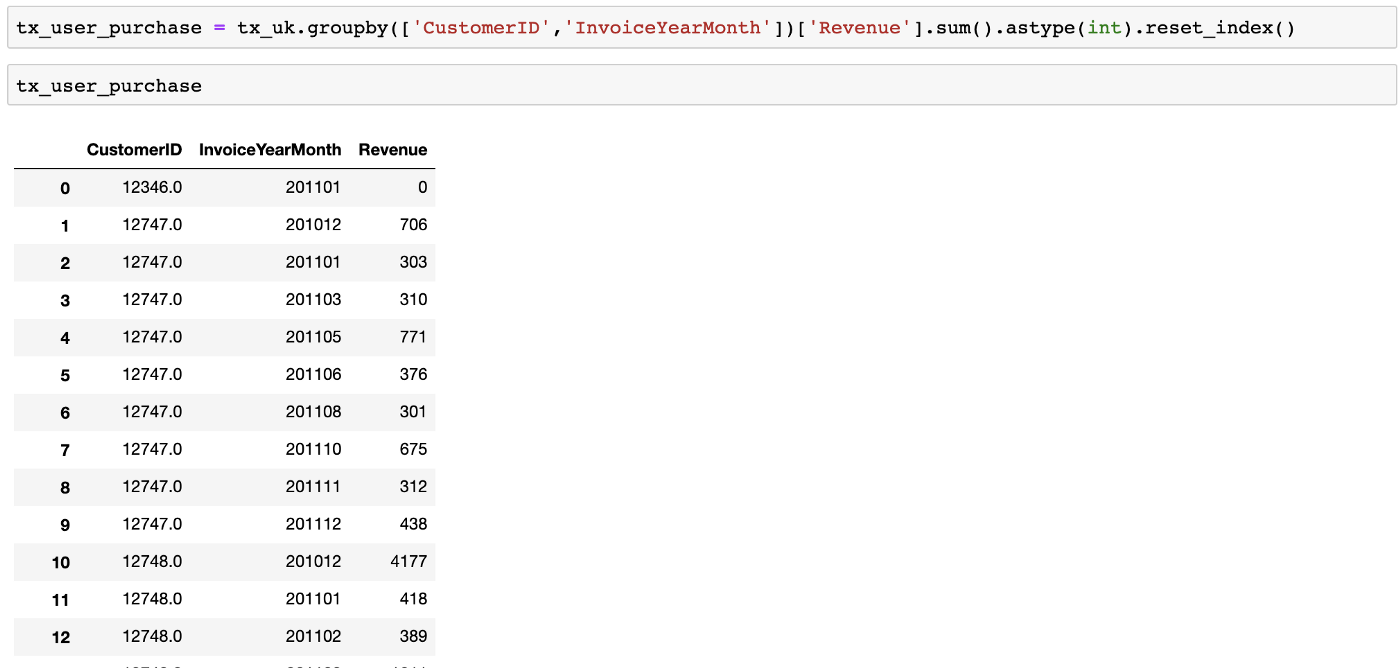

#identify which users are active by looking at their revenue per month
tx_user_purchase = tx_uk.groupby(['CustomerID','InvoiceYearMonth'])['Revenue'].sum().reset_index()

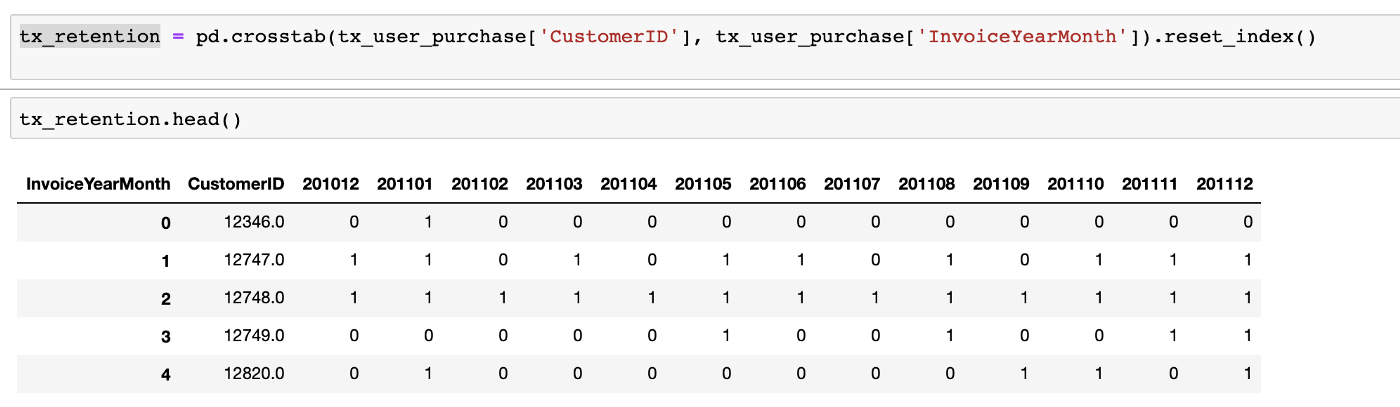

#create retention matrix with crosstab
tx_retention = pd.crosstab(tx_user_purchase['CustomerID'], tx_user_purchase['InvoiceYearMonth']).reset_index()

tx_retention.head()

#create an array of dictionary which keeps Retained & Total User count for each month
months = tx_retention.columns[2:]
retention_array = []
for i in range(len(months)-1):
    retention_data = {}
    selected_month = months[i+1]
    prev_month = months[i]
    retention_data['InvoiceYearMonth'] = int(selected_month)
    retention_data['TotalUserCount'] = tx_retention[selected_month].sum()
    retention_data['RetainedUserCount'] = tx_retention[(tx_retention[selected_month]>0) & (tx_retention[prev_month]>0)][selected_month].sum()
    retention_array.append(retention_data)

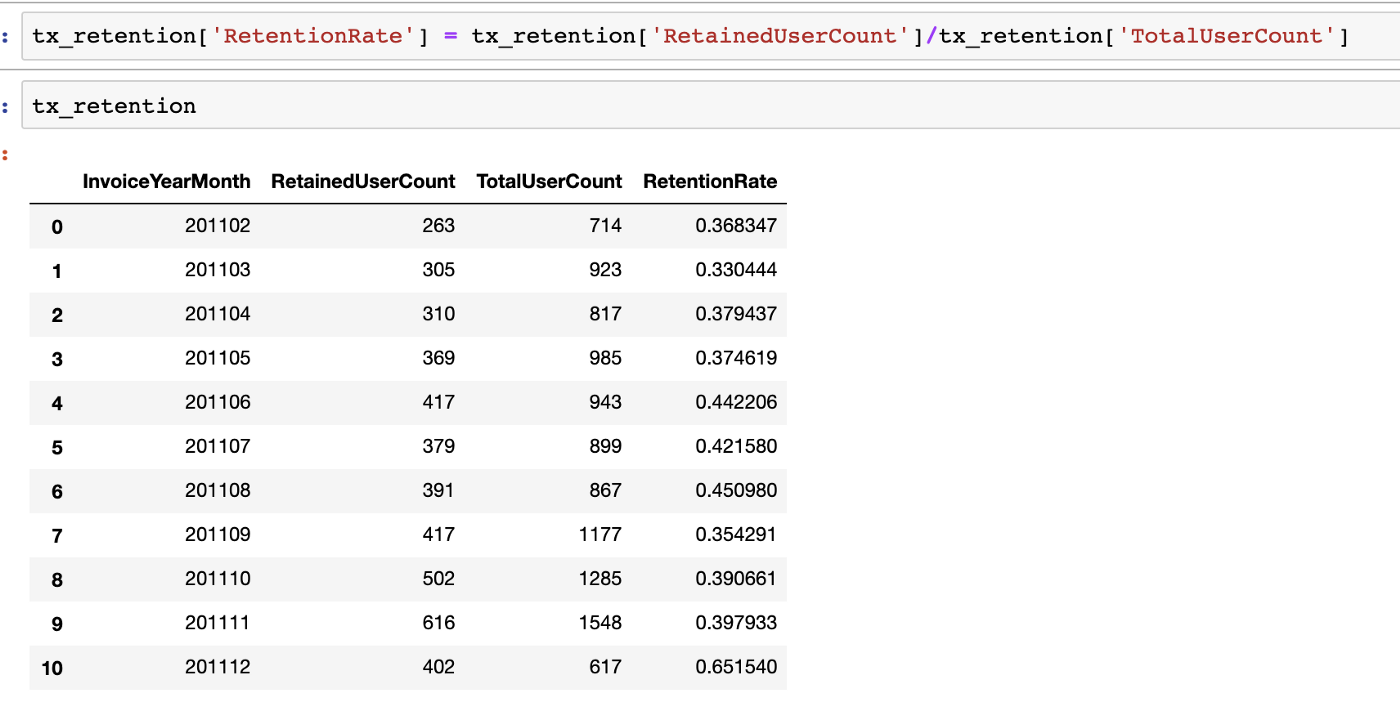

#convert the array to dataframe and calculate Retention Rate
tx_retention = pd.DataFrame(retention_array)
tx_retention['RetentionRate'] = tx_retention['RetainedUserCount']/tx_retention['TotalUserCount']

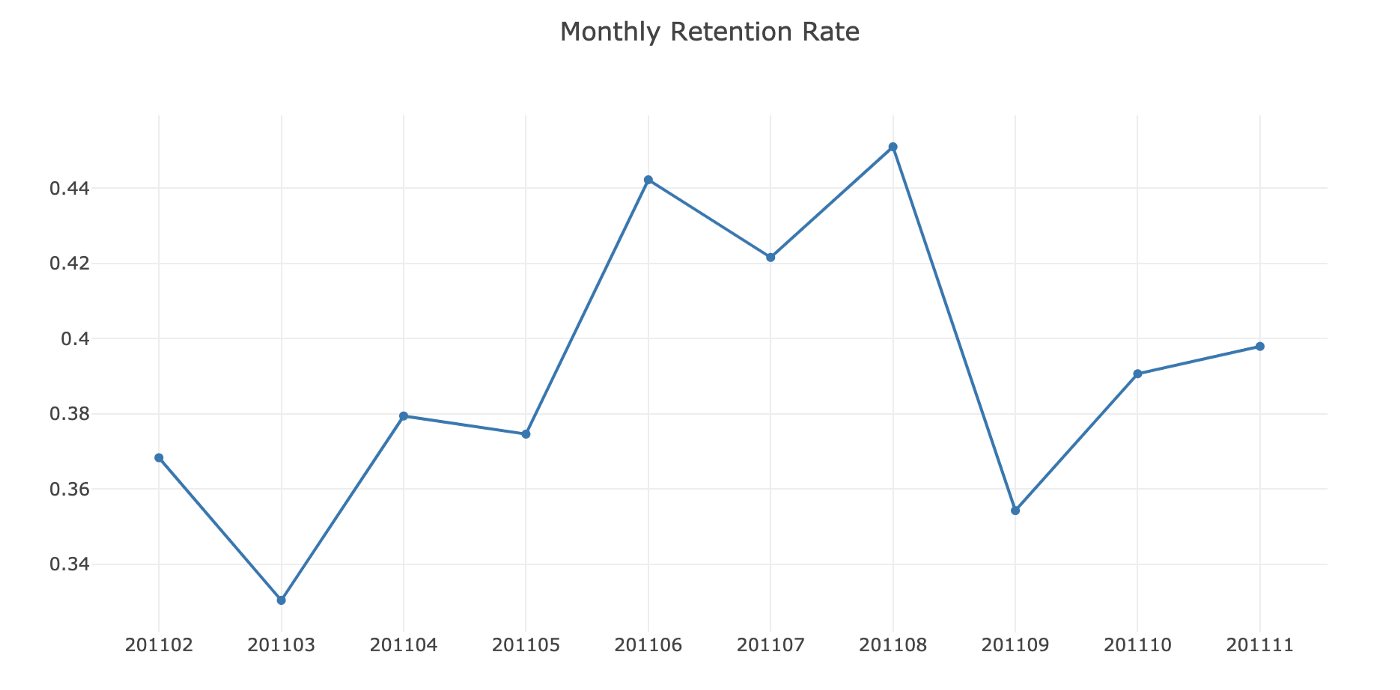

#plot the retention rate graph
plot_data = [
    go.Scatter(
        x=tx_retention.query("InvoiceYearMonth<201112")['InvoiceYearMonth'],
        y=tx_retention.query("InvoiceYearMonth<201112")['RetentionRate'],
        name="organic"
    )

]

plot_layout = go.Layout(
        xaxis={"type": "category"},
        title='Monthly Retention Rate'
    )
fig = go.Figure(data=plot_data, layout=plot_layout)
pyoff.iplot(fig)

#create our retention table again with crosstab() and add firs purchase year month view
tx_retention = pd.crosstab(tx_user_purchase['CustomerID'], tx_user_purchase['InvoiceYearMonth']).reset_index()
tx_retention = pd.merge(tx_retention,tx_min_purchase[['CustomerID','MinPurchaseYearMonth']],on='CustomerID')
new_column_names = [ 'm_' + str(column) for column in tx_retention.columns[:-1]]
new_column_names.append('MinPurchaseYearMonth')
tx_retention.columns = new_column_names

#create the array of Retained users for each cohort monthly
retention_array = []
for i in range(len(months)):
    retention_data = {}
    selected_month = months[i]
    prev_months = months[:i]
    next_months = months[i+1:]
    for prev_month in prev_months:
        retention_data[prev_month] = np.nan

    total_user_count = tx_retention[tx_retention.MinPurchaseYearMonth ==  selected_month].MinPurchaseYearMonth.count()
    retention_data['TotalUserCount'] = total_user_count
    retention_data[selected_month] = 1

    query = "MinPurchaseYearMonth == {}".format(selected_month)


    for next_month in next_months:
        new_query = query + " and {} > 0".format(str('m_' + str(next_month)))
        retention_data[next_month] = np.round(tx_retention.query(new_query)['m_' + str(next_month)].sum()/total_user_count,2)
    retention_array.append(retention_data)

tx_retention = pd.DataFrame(retention_array)
tx_retention.index = months

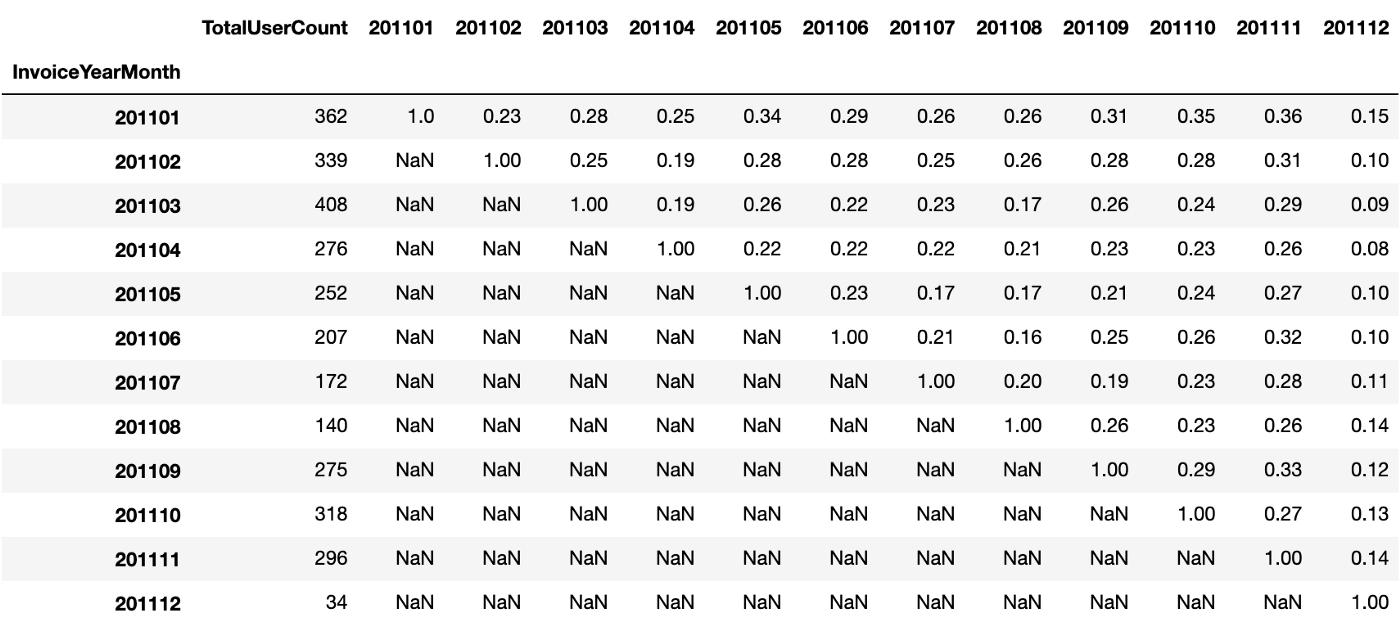

#showing new cohort based retention table
tx_retention
